Product Overview

Comparison of Conventional CCD and Super HAD CCD Sensor
SONY CCD cameras sold in the market nowadays are almost all using Super HAD technology. Super HAD provides 2 times of better sensitivity and 6 db better smear rejection ratio than the formal traditional type of CCD. Two micro lenses on top of each photo diode are able to collect more photon from incoming light than the old CCD made by SONY and any other maker.
Compared to Super HAD, Sony Ex-view CCD Do have 4 times of better sensitivity on near infrared zone ( 800~ 900 nm). However, if the users use it properly, it will be excellent for night vision. If not properly, it will became a draw back because the infrared will cause color distortion and blurred image due to basic physics that infrared focuses on deeper location and cause hologram image especially if the certain lenses are used.

:: Camera ::

VS-D5132
•Color Dome Camera (Day & Night)
•Image Sensor: 1/4" DIS
•Horizontal Resolution : 500TVL
•Operation Temp : 40°C ~ 70°C

MT221DN
• Color dome
• 1/3" SONY Super HAD CCD.
• 420TVL, 3.6mm lens.
• Day/Night function.

KPC132ZEP
• 1/3" H.R. Color CCD Camera, 500TVL
• Satisfied minimum illumination: 0.1 Lux / F2.0,
• Build in Electronic Shutter, Small and Exquisite

GH-520IR
• Color IR Dome Camera
• Image sensor: 1/3" SHARP CCD
• Resolution: 420 TVL

GH-530HIR
• Color Infrared Dome Camera, 520 TVL
• Gain Control: AUTO
• S/N Ratio > 50dB
• Lens: 3.6/6mm
• IR range: 20m

MT333
• Color IR Camera
• 1/3” SONY Super HAD CCD 420TVL.
• 3.6mm broad lens.
• 36LEDs able to capture image up to
• 25m clear night.

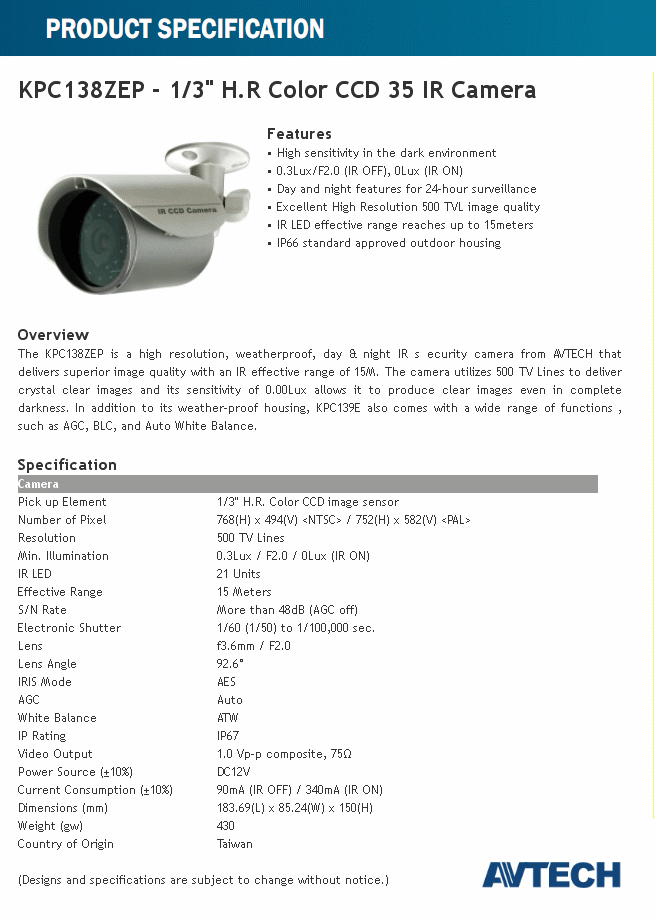

KPC138ZEP
• 1/3" H.R Color CCD 35 IR Camera
• High sensitivity in the dark environment
• Day and night features for 24-hour surveillance
• Excellent High Resolution 500 TVL image quality
• IR LED effective range reaches up to 15meters
• IP66 standard approved outdoor housing







-------------------------------------------------------------------------------------------------------------------
